Introducing
RED
LINE DEFENSE
“Boundary Surveillance Testing & Breach Prevention”
The REDLINE DEFENSE inspection is conducted in two distinct phases to maximize detection while minimizing the risk of alerting any eavesdropper:
INSPECTION
A thorough inspection is recommended for locations identified as key areas. It is suggested to utilize invisible ink to mark essential items. This approach will streamline follow-up inspections by eliminating the need to re-inspect items that remain unopened, thereby optimizing both time and cost efficiency.
The TSCM inspection will include both electronic and physical searches for both active and passive devices, including:
- Wireless Radio Frequency Clandestine Devices
- A.C. Carrier Current Transmitters
- Optical Transmission Devices
- Hidden Video Devices
- Hardwired Microphones
- Modified Telephones
- Telephone Transmitters
- Active and Passive Audio/Video Clandestine Devices
- Hidden Clandestine Devices within Walls, Floors, Ceilings and Furniture. Etc.
- Telephone / Fax Wire Taps
- Optical Tamper Examination of Pre-marked Electrical Outlets, Switches and Telephone Modular Sockets etc. (for re-inspection of previously inspected areas & items)
TSCM Equipment Utilized
VULSAN X CORP has invested heavily in the latest TSCM technology to keep our REDLINE DEFENSE program at the forefront in the region.
We choose equipment based on efficiency, reliability, and detection range, allowing us to detect everything from basic spying tools to advanced surveillance systems.
All tools are regularly updated and tested, so we can deliver top performance and reliable protection in any situation.

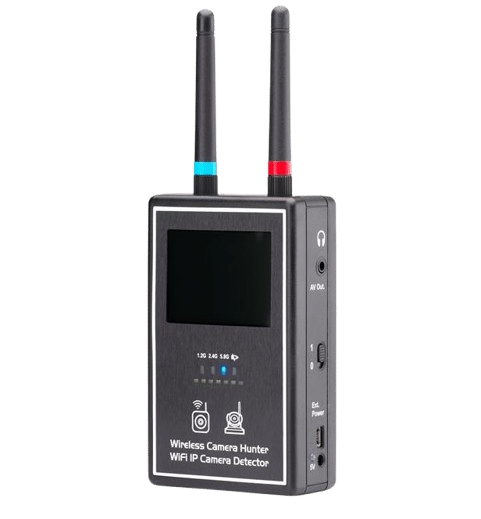

Wireless Video Camera Detector
handheld device is used to detect any video transmissions from hidden wireless surveillance cameras within its frequency range.
OSCOR Green Spectrum Analyzer
Designed for commercial TSCM operations, the OSCOR Green detects illicit eavesdropping signals, conducts RF emissions analysis, and supports site surveys across a 10 kHz to 24 GHz frequency range.

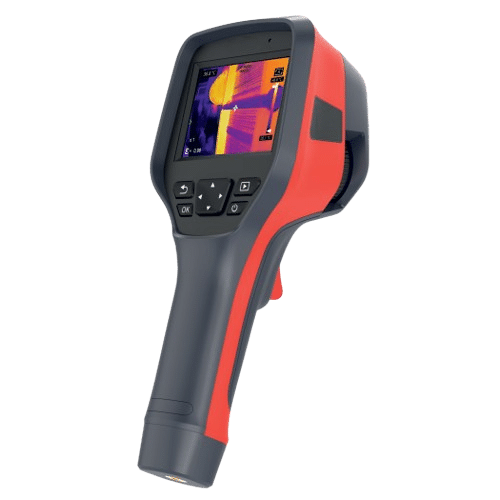

Portable Thermal Imaging Camera
Used to detect heat signatures from hidden circuits within devices like keyboards, mice, and electrical sockets, without requiring disassembly.

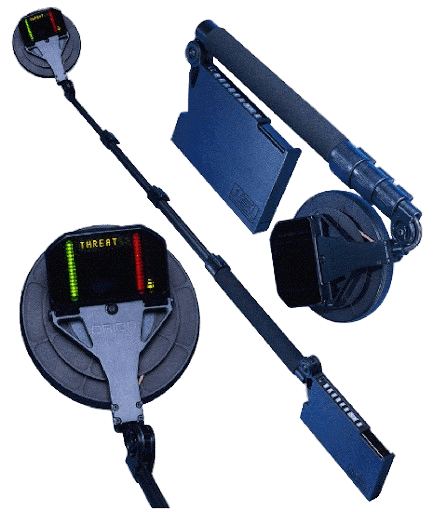

ORION NJE-4000 (Non-Linear Junction Detector Detector)
Detects active and inactive electronic components (diodes, transistors) in hidden devices using non-linear junction detection technology.

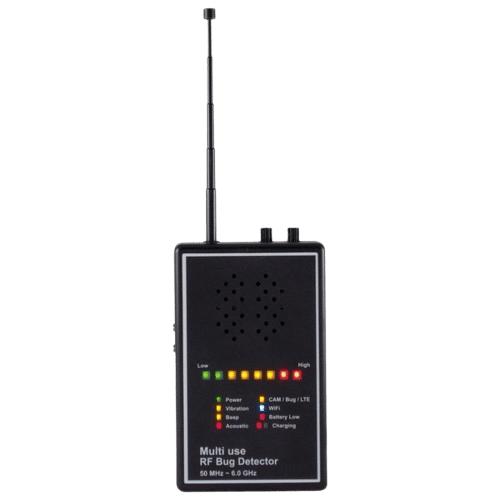

Acoustic Detector for analog & digital RF signals.
WiFi Bluetooth Spread spectrum Cellular 2G / GSM / PCS Cellular 2.5G GPRS & EGPRS Cellular 3G WCDMA, HSPA, UTMS Cellular 4G LTE

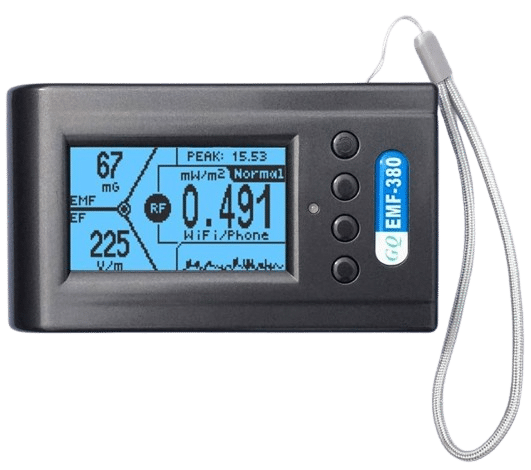

Multi-Field Electromagnetic and Spectrum Detector
Handheld device for detecting EMF, ELF, RF (up to 10GHz), including 5G, smart meters, WiFi, with integrated 2.5GHz spectrum analysis.
DPA-7000 - TALAN [ Telephone and Line Analyzer]
TALAN is a telephone and wiring analyser which detects eavesdropping devices on analogue or digital telephone lines. This TSCM equipment has a built-in Frequency Domain Reflectometer (FDR) which measures cable lengths and detects unauthorised junctions. The TALAN also identifies all telephone pair combinations.
CPM-700 [Countersurveillance Probe/ Monitor] & Accessories
Designed to detect and locate room, phone, body bugs, video transmitters, and tape recorders, the CPM-700 is a versatile counter-surveillance tool for identifying a wide range of electronic threats. Included Accessories: Standard RF Probe VLF Carrier Current Probe Infrared Probe RF Sniffer Probe Modular Phone Adapter Acoustic Leakage Probe Broadband Microwave Probe
ANG-2200 Acoustic Noise Generator
Function Generates perimeter noise to block: Wired/contact mics Audio transmitters in outlets Laser/microwave window surveillance Customizable with transducers, speakers, and mounts Adaptable to various environments Injects noise into perimeter—not conversation space Allows natural conversation without interference
Methodology & Procedures
Phase 1: Non-Alerting Phase
This phase is executed discreetly to detect active transmissions or covert devices without tipping off the eavesdropper, who might otherwise deactivate or remove equipment.
RF Spectrum Analysis
Carrier Current Inspection
Camera & Optical Detection
Visual & Layout Assessment
Thermal Imaging
Tamper Check
Phase 2: Alerting Phase
Overt inspection to uncover hidden or dormant threats.
